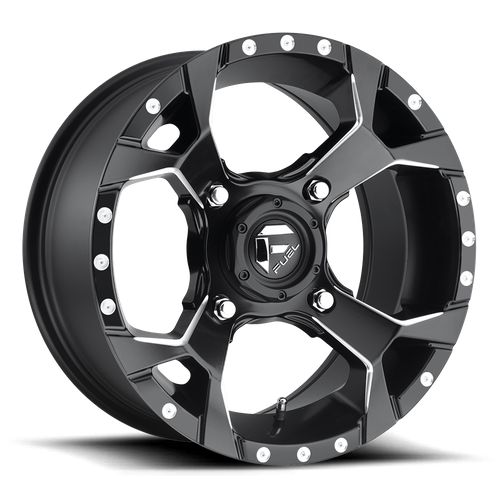

Fuel Off-Road D546 Assault
Fuel Off-Road D546 Assault
Regular price
$345.00 USD
Regular price
Sale price
$345.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Fuel Off-Road Assault is one of the most copied wheel designs in the truck world, and the original still hits hardest. Three milled finishes — Matte Black Milled, Gloss Black Milled, and Matte Black Red Milled — stretch from 17x8.5 to 22x12 with dual-drilled 5-, 6-, and 8-lug patterns that fit nearly every half-ton and HD truck on the road. With 98 fitments and load ratings up to 3,700 lbs, there is an Assault for every build from leveled daily driver to wide show truck.
| Part# | Finish | Size | Bolt Pattern | Offset | Bore | MSRP |
|---|---|---|---|---|---|---|
| D5461785G157 | Matte Black Milled | 17X8.5 | 5X108/5X127 | 25mm | 71.50 | $345.00 |
| D54617852652 | Matte Black Milled | 17X8.5 | 5X114.3/5X127 | 14mm | 78.10 | $345.00 |
| D54617859452 | Matte Black Milled | 17X8.5 | 6X120 | 14mm | 67.06 | $345.00 |
| D54617859852 | Matte Black Milled | 17X8.5 | 6X135/6X139.7 | 14mm | 106.10 | $345.00 |
| D54617859857 | Matte Black Milled | 17X8.5 | 6X135/6X139.7 | 25mm | 106.10 | $345.00 |
| D54617902645 | Matte Black Milled | 17X9 | 5X114.3/5X127 | -12mm | 78.10 | $345.00 |
| D54617902650 | Matte Black Milled | 17X9 | 5X114.3/5X127 | 1mm | 78.10 | $345.00 |
| D54617907045 | Matte Black Milled | 17X9 | 5X139.7/5X150 | -12mm | 110.10 | $345.00 |
| D54617909845 | Matte Black Milled | 17X9 | 6X135/6X139.7 | -12mm | 106.10 | $345.00 |
| D54617909849 | Matte Black Milled | 17X9 | 6X135/6X139.7 | 2mm | 106.10 | $345.00 |
| D54617908250 | Matte Black Milled | 17X9 | 8X165.1 | 1mm | 125.10 | $345.00 |
| D54618902657 | Matte Black Milled | 18X9 | 5X114.3/5X127 | 20mm | 78.10 | $395.00 |
| D54618902650 | Matte Black Milled | 18X9 | 5X114.3/5X127 | 1mm | 78.10 | $395.00 |
| D54618902645 | Matte Black Milled | 18X9 | 5X114.3/5X127 | -12mm | 78.10 | $395.00 |
| D54618909844 | Matte Black Milled | 18X9 | 6X135/6X139.7 | -13mm | 106.10 | $395.00 |
| D54618909850 | Matte Black Milled | 18X9 | 6X135/6X139.7 | 1mm | 106.10 | $395.00 |
| D54618909856 | Matte Black Milled | 18X9 | 6X135/6X139.7 | 19mm | 106.10 | $395.00 |
| D54618908245 | Matte Black Milled | 18X9 | 8X165.1 | -12mm | 125.10 | $395.00 |
| D54618908250 | Matte Black Milled | 18X9 | 8X165.1 | 1mm | 125.10 | $395.00 |
| D54618901750 | Matte Black Milled | 18X9 | 8X170 | 1mm | 125.10 | $395.00 |
| D54618901857 | Matte Black Milled | 18X9 | 8X180 | 20mm | 124.20 | $395.00 |
| D5462090G162 | Matte Black Milled | 20X9 | 5X108/5X127 | 30mm | 71.50 | $500.00 |
| D54620905263 | Matte Black Milled | 20X9 | 5X114.3/5X120 | 35mm | 72.56 | $500.00 |
| D54620907057 | Matte Black Milled | 20X9 | 5X139.7/5X150 | 20mm | 110.10 | $500.00 |
| D54620907050 | Matte Black Milled | 20X9 | 5X139.7/5X150 | 1mm | 110.10 | $500.00 |
| D54620909452 | Matte Black Milled | 20X9 | 6X120 | 7mm | 67.06 | $500.00 |
| D54620909856 | Matte Black Milled | 20X9 | 6X135/6X139.7 | 19mm | 106.10 | $500.00 |
| D54620909850 | Matte Black Milled | 20X9 | 6X135/6X139.7 | 1mm | 106.10 | $500.00 |
| D54620908257 | Matte Black Milled | 20X9 | 8X165.1 | 20mm | 125.10 | $500.00 |
| D54620908250 | Matte Black Milled | 20X9 | 8X165.1 | 1mm | 125.10 | $500.00 |
| D54620901750 | Matte Black Milled | 20X9 | 8X170 | 1mm | 125.10 | $500.00 |
| D54620901850 | Matte Black Milled | 20X9 | 8X180 | 1mm | 124.20 | $500.00 |
| D54620901857 | Matte Black Milled | 20X9 | 8X180 | 20mm | 124.20 | $500.00 |
| D54620002647 | Matte Black Milled | 20X10 | 5X114.3/5X127 | -18mm | 78.10 | $525.00 |
| D54620007047 | Matte Black Milled | 20X10 | 5X139.7/5X150 | -18mm | 110.10 | $525.00 |
| D54620009846 | Matte Black Milled | 20X10 | 6X135/6X139.7 | -22mm | 106.10 | $525.00 |
| D54620008247 | Matte Black Milled | 20X10 | 8X165.1 | -18mm | 125.10 | $525.00 |
| D54620001747 | Matte Black Milled | 20X10 | 8X170 | -18mm | 125.10 | $525.00 |
| D54620001847 | Matte Black Milled | 20X10 | 8X180 | -18mm | 124.20 | $525.00 |
| D54620202647 | Matte Black Milled | 20X12 | 5X114.3/5X127 | -43mm | 78.10 | $575.00 |
| D54620209847 | Matte Black Milled | 20X12 | 6X135/6X139.7 | -43mm | 106.10 | $575.00 |
| D54622957060 | Matte Black Milled | 22X9.5 | 5X139.7/5X150 | 20mm | 110.10 | $550.00 |
| D54622959859 | Matte Black Milled | 22X9.5 | 6X135/6X139.7 | 20mm | 106.10 | $550.00 |
| D54622002647 | Matte Black Milled | 22X10 | 5X114.3/5X127 | -18mm | 78.10 | $550.00 |
| D54622007047 | Matte Black Milled | 22X10 | 5X139.7/5X150 | -18mm | 110.10 | $550.00 |
| D54622009846 | Matte Black Milled | 22X10 | 6X135/6X139.7 | -18mm | 106.10 | $550.00 |
| D54622008247 | Matte Black Milled | 22X10 | 8X165.1 | -18mm | 125.10 | $550.00 |
| D54622001747 | Matte Black Milled | 22X10 | 8X170 | -18mm | 125.10 | $550.00 |
| D54622001847 | Matte Black Milled | 22X10 | 8X180 | -18mm | 124.20 | $550.00 |
| D54622202647 | Matte Black Milled | 22X12 | 5X114.3/5X127 | -44mm | 78.10 | $600.00 |
| D54622207047 | Matte Black Milled | 22X12 | 5X139.7/5X150 | -44mm | 110.10 | $600.00 |
| D54622209846 | Matte Black Milled | 22X12 | 6X135/6X139.7 | -44mm | 106.10 | $600.00 |
| D54622208247 | Matte Black Milled | 22X12 | 8X165.1 | -44mm | 125.10 | $600.00 |
| D54622201747 | Matte Black Milled | 22X12 | 8X170 | -44mm | 125.10 | $600.00 |
| D54622201847 | Matte Black Milled | 22X12 | 8X180 | -44mm | 124.20 | $600.00 |
| D57617902650 | Gloss Black Milled | 17X9 | 5X114.3/5X127 | 1mm | 78.10 | $345.00 |
| D57617902645 | Gloss Black Milled | 17X9 | 5X114.3/5X127 | -12mm | 78.10 | $345.00 |
| D57617909849 | Gloss Black Milled | 17X9 | 6X135/6X139.7 | 2mm | 106.10 | $345.00 |
| D57617909845 | Gloss Black Milled | 17X9 | 6X135/6X139.7 | -12mm | 106.10 | $345.00 |
| D78717852652 | Matte Black Red Milled | 17X8.5 | 5X114.3/5X127 | 14mm | 78.10 | $345.00 |
| D78717859452 | Matte Black Red Milled | 17X8.5 | 6X120 | 14mm | 66.90 | $345.00 |
| D78717902650 | Matte Black Red Milled | 17X9 | 5X114.3/5X127 | 1mm | 78.10 | $345.00 |
| D78717902645 | Matte Black Red Milled | 17X9 | 5X114.3/5X127 | -12mm | 78.10 | $345.00 |
| D78717909849 | Matte Black Red Milled | 17X9 | 6X135/6X139.7 | 2mm | 106.10 | $345.00 |
| D57618902645 | Gloss Black Milled | 18X9 | 5X114.3/5X127 | -12mm | 78.10 | $395.00 |
| D57618902650 | Gloss Black Milled | 18X9 | 5X114.3/5X127 | 1mm | 78.10 | $395.00 |
| D57618909844 | Gloss Black Milled | 18X9 | 6X135/6X139.7 | -13mm | 106.10 | $395.00 |
| D57618909850 | Gloss Black Milled | 18X9 | 6X135/6X139.7 | 1mm | 106.10 | $395.00 |
| D57618909856 | Gloss Black Milled | 18X9 | 6X135/6X139.7 | 19mm | 106.10 | $395.00 |
| D78718902645 | Matte Black Red Milled | 18X9 | 5X114.3/5X127 | -12mm | 78.10 | $395.00 |
| D78718902650 | Matte Black Red Milled | 18X9 | 5X114.3/5X127 | 1mm | 78.10 | $395.00 |
| D78718909856 | Matte Black Red Milled | 18X9 | 6X135/6X139.7 | 19mm | 106.10 | $395.00 |
| D78718909850 | Matte Black Red Milled | 18X9 | 6X135/6X139.7 | 1mm | 106.10 | $395.00 |
| D57620902650 | Gloss Black Milled | 20X9 | 5X114.3/5X127 | 1mm | 78.10 | $500.00 |
| D57620907050 | Gloss Black Milled | 20X9 | 5X139.7/5X150 | 1mm | 110.10 | $500.00 |
| D57620907057 | Gloss Black Milled | 20X9 | 5X139.7/5X150 | 20mm | 110.10 | $500.00 |
| D57620909856 | Gloss Black Milled | 20X9 | 6X135/6X139.7 | 19mm | 106.10 | $500.00 |
| D57620909850 | Gloss Black Milled | 20X9 | 6X135/6X139.7 | 1mm | 106.10 | $500.00 |
| D57620908250 | Gloss Black Milled | 20X9 | 8X165.1 | 1mm | 125.10 | $500.00 |
| D57620908257 | Gloss Black Milled | 20X9 | 8X165.1 | 20mm | 125.10 | $500.00 |
| D57620901750 | Gloss Black Milled | 20X9 | 8X170 | 1mm | 125.10 | $500.00 |
| D57620901757 | Gloss Black Milled | 20X9 | 8X170 | 20mm | 125.10 | $500.00 |
| D57620901850 | Gloss Black Milled | 20X9 | 8X180 | 1mm | 124.20 | $500.00 |
| D57620901857 | Gloss Black Milled | 20X9 | 8X180 | 20mm | 124.20 | $500.00 |
| D57620002647 | Gloss Black Milled | 20X10 | 5X114.3/5X127 | -18mm | 78.10 | $525.00 |
| D57620007047 | Gloss Black Milled | 20X10 | 5X139.7/5X150 | -18mm | 110.10 | $525.00 |
| D57620009846 | Gloss Black Milled | 20X10 | 6X135/6X139.7 | -22mm | 106.10 | $525.00 |
| D57620008247 | Gloss Black Milled | 20X10 | 8X165.1 | -18mm | 125.10 | $525.00 |
| D57620001747 | Gloss Black Milled | 20X10 | 8X170 | -18mm | 125.10 | $525.00 |
| D57620001847 | Gloss Black Milled | 20X10 | 8X180 | -18mm | 124.20 | $525.00 |
| D78720902650 | Matte Black Red Milled | 20X9 | 5X114.3/5X127 | 1mm | 78.10 | $500.00 |
| D78720909850 | Matte Black Red Milled | 20X9 | 6X135/6X139.7 | 1mm | 106.10 | $500.00 |
| D78720909856 | Matte Black Red Milled | 20X9 | 6X135/6X139.7 | 19mm | 106.10 | $500.00 |
| D78720002647 | Matte Black Red Milled | 20X10 | 5X114.3/5X127 | -18mm | 78.10 | $525.00 |
| D78720009846 | Matte Black Red Milled | 20X10 | 6X135/6X139.7 | -22mm | 106.10 | $525.00 |
| D57622009846 | Gloss Black Milled | 22X10 | 6X135/6X139.7 | -18mm | 106.10 | $550.00 |
