KMC KM235 Grenade Crawl Beadlock
KMC KM235 Grenade Crawl Beadlock
Regular price
$695.00 USD
Regular price
Sale price
$695.00 USD
Quantity
Couldn't load pickup availability

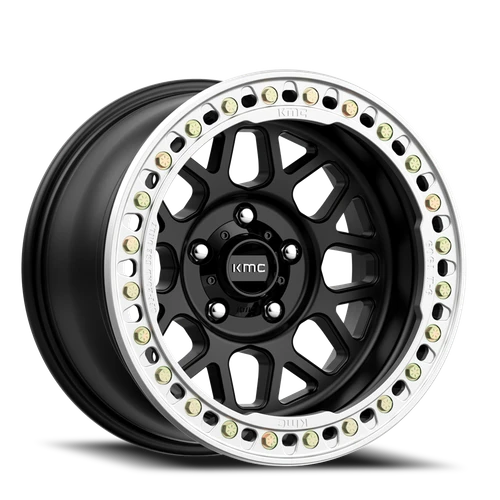

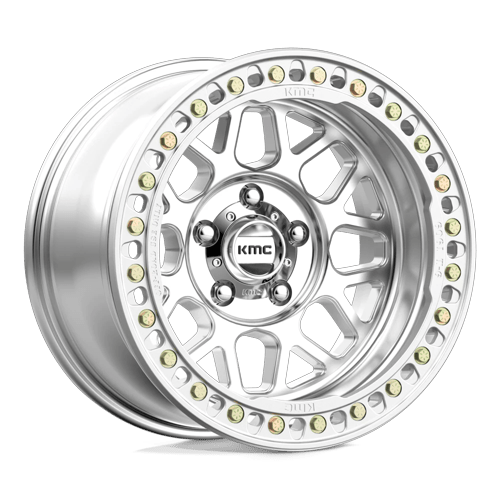

The KMC KM235 Grenade Crawl Beadlock is a true beadlock wheel with KMC’s signature multi-spoke grenade styling, built for serious crawling. Cast aluminum construction and a functional beadlock ring keep tires seated at low pressure when the trail gets nasty. Offered in Machined and Satin Black finishes in 17, 18, and 20-inch sizes with 5, 6, and 8-lug bolt patterns.
| Part# | Finish | Size | Bolt Pattern | Offset | Bore | MSRP |
|---|---|---|---|---|---|---|
| KM23578550500 | MACHINED | 17X8.5 | 5X127 | 0mm | 71.50 | $695.00 |
| KM23578563500 | MACHINED | 17X8.5 | 6X135 | 0mm | 87.10 | $695.00 |
| KM23578560500 | MACHINED | 17X8.5 | 6X139.7 | 0mm | 108.00 | $695.00 |
| KM23578580500 | MACHINED | 17X8.5 | 8X165.1 | 0mm | 125.10 | $695.00 |
| KM23579050538N | MACHINED | 17X9 | 5X127 | -38mm | 71.50 | $695.00 |
| KM23579060538N | MACHINED | 17X9 | 6X139.7 | -38mm | 108.00 | $695.00 |
| KM23579080538N | MACHINED | 17X9 | 8X165.1 | -38mm | 125.10 | $695.00 |
| KM23579087538N | MACHINED | 17X9 | 8X170 | -38mm | 125.10 | $695.00 |
| KM23578550700 | SATIN BLACK | 17X8.5 | 5X127 | 0mm | 71.50 | $620.00 |
| KM23578563700 | SATIN BLACK | 17X8.5 | 6X135 | 0mm | 87.10 | $620.00 |
| KM23578560700 | SATIN BLACK | 17X8.5 | 6X139.7 | 0mm | 108.00 | $620.00 |
| KM23578580700 | SATIN BLACK | 17X8.5 | 8X165.1 | 0mm | 125.10 | $620.00 |
| KM23579050738N | SATIN BLACK | 17X9 | 5X127 | -38mm | 71.50 | $620.00 |
| KM23579060738N | SATIN BLACK | 17X9 | 6X139.7 | -38mm | 108.00 | $620.00 |
| KM23579080738N | SATIN BLACK | 17X9 | 8X165.1 | -38mm | 125.10 | $620.00 |
| KM23589050524N | MACHINED | 18X9 | 5X127 | -24mm | 71.50 | $745.00 |
| KM23589050510 | MACHINED | 18X9 | 5X127 | 10mm | 71.50 | $745.00 |
| KM23589063524N | MACHINED | 18X9 | 6X135 | -24mm | 87.10 | $745.00 |
| KM23589063510 | MACHINED | 18X9 | 6X135 | 10mm | 87.10 | $745.00 |
| KM23589060510 | MACHINED | 18X9 | 6X139.7 | 10mm | 108.00 | $745.00 |
| KM23589060524N | MACHINED | 18X9 | 6X139.7 | -24mm | 108.00 | $745.00 |
| KM23589080524N | MACHINED | 18X9 | 8X165.1 | -24mm | 125.10 | $745.00 |
| KM23589080510 | MACHINED | 18X9 | 8X165.1 | 10mm | 125.10 | $745.00 |
| KM23589087524N | MACHINED | 18X9 | 8X170 | -24mm | 125.10 | $745.00 |
| KM23589087510 | MACHINED | 18X9 | 8X170 | 10mm | 125.10 | $745.00 |
| KM23589050724N | SATIN BLACK | 18X9 | 5X127 | -24mm | 71.50 | $670.00 |
| KM23589063724N | SATIN BLACK | 18X9 | 6X135 | -24mm | 87.10 | $732.00 |
| KM23589060710 | SATIN BLACK | 18X9 | 6X139.7 | 10mm | 108.00 | $670.00 |
| KM23589060724N | SATIN BLACK | 18X9 | 6X139.7 | -24mm | 108.00 | $670.00 |
| KM23589080710 | SATIN BLACK | 18X9 | 8X165.1 | 10mm | 125.10 | $732.00 |
| KM23589087724N | SATIN BLACK | 18X9 | 8X170 | -24mm | 125.10 | $670.00 |
| KM23521050548N | MACHINED | 20X10 | 5X127 | -48mm | 71.50 | $845.00 |
| KM23521060548N | MACHINED | 20X10 | 6X139.7 | -48mm | 108.00 | $845.00 |
| KM23521080548N | MACHINED | 20X10 | 8X165.1 | -48mm | 125.10 | $845.00 |
| KM23521050748N | SATIN BLACK | 20X10 | 5X127 | -48mm | 71.50 | $770.00 |
| KM23521060748N | SATIN BLACK | 20X10 | 6X139.7 | -48mm | 108.00 | $770.00 |
| KM23521080748N | SATIN BLACK | 20X10 | 8X165.1 | -48mm | 125.10 | $770.00 |
