KMC KM236 Tank Beadlock
KMC KM236 Tank Beadlock
Regular price
$620.00 USD
Regular price
Sale price
$620.00 USD
Quantity
Couldn't load pickup availability

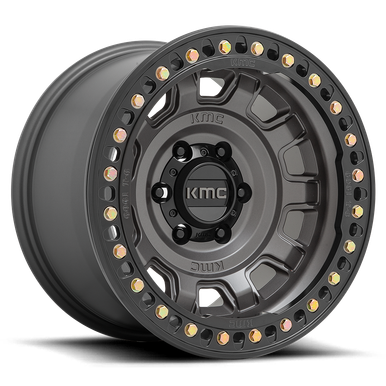

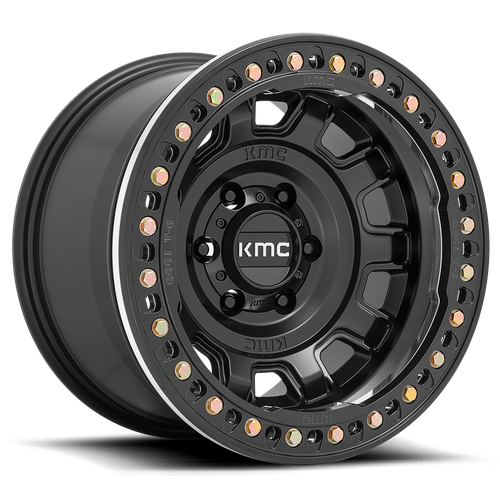

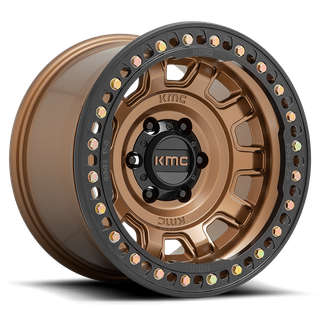

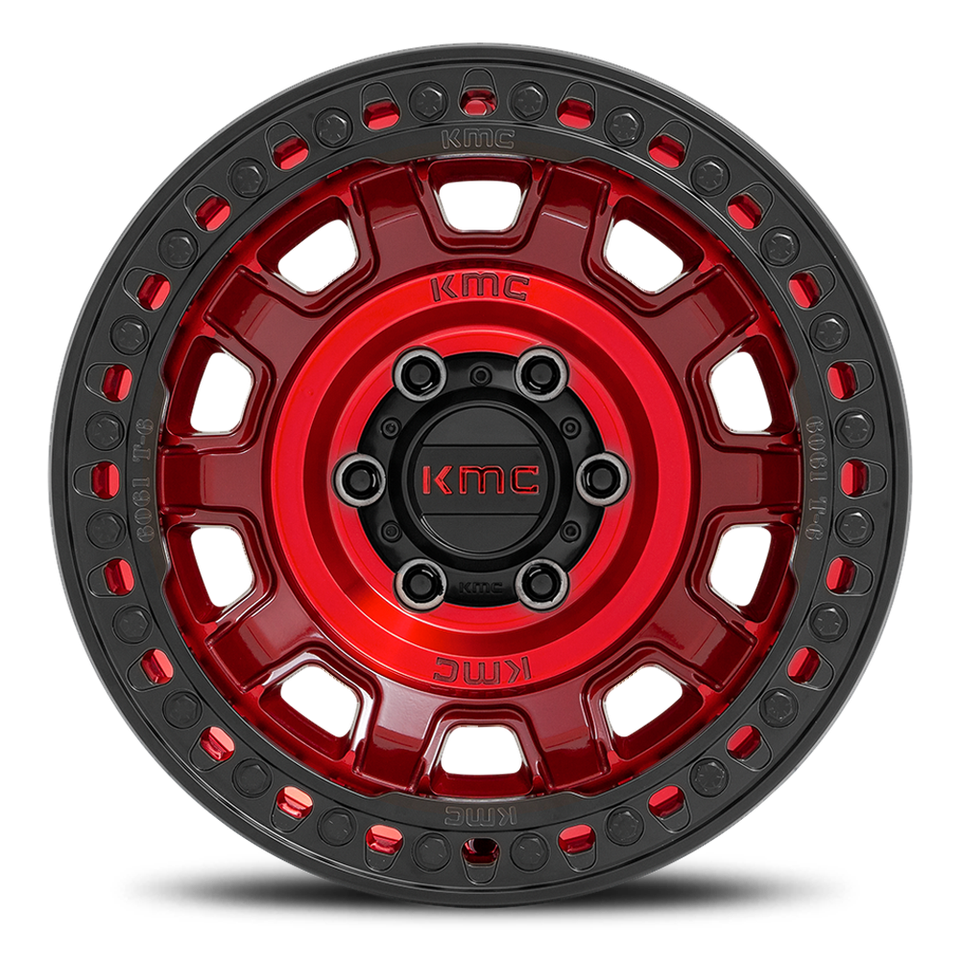

The KMC KM236 Tank Beadlock is a performance-driven cast aluminum wheel built for Jeeps, rock crawlers, and Baja-style trail runners. The true beadlock construction clamps the tire bead to the wheel so you can air down hard without rolling a bead off the rim. Note: beadlock wheels are sold for off-road use only. It comes in Anthracite, Candy Red, Matte Bronze, and Satin Black, all in 17x9 with fitments for Jeep, Toyota, and full-size trucks.
| Part# | Finish | Size | Bolt Pattern | Offset | Bore | MSRP |
|---|---|---|---|---|---|---|
| KM23679050438N | ANTHRACITE | 17X9 | 5X127 | -38mm | 71.50 | $620.00 |
| KM23679050415N | ANTHRACITE | 17X9 | 5X127 | -15mm | 71.50 | $620.00 |
| KM23679060438N | ANTHRACITE | 17X9 | 6X139.7 | -38mm | 108.00 | $620.00 |
| KM23679060415N | ANTHRACITE | 17X9 | 6X139.7 | -15mm | 108.00 | $620.00 |
| KM23679087438N | ANTHRACITE | 17X9 | 8X170 | -38mm | 125.10 | $620.00 |
| KM23679050915N | CANDY RED | 17X9 | 5X127 | -15mm | 71.50 | $620.00 |
| KM23679050938N | CANDY RED | 17X9 | 5X127 | -38mm | 71.50 | $620.00 |
| KM23679060938N | CANDY RED | 17X9 | 6X139.7 | -38mm | 108.00 | $679.00 |
| KM23679060915N | CANDY RED | 17X9 | 6X139.7 | -15mm | 108.00 | $679.00 |
| KM23679050615N | MATTE BRONZE | 17X9 | 5X127 | -15mm | 71.50 | $620.00 |
| KM23679050638N | MATTE BRONZE | 17X9 | 5X127 | -38mm | 71.50 | $620.00 |
| KM23679060615N | MATTE BRONZE | 17X9 | 6X139.7 | -15mm | 108.00 | $679.00 |
| KM23679060638N | MATTE BRONZE | 17X9 | 6X139.7 | -38mm | 108.00 | $620.00 |
| KM23679087638N | MATTE BRONZE | 17X9 | 8X170 | -38mm | 125.10 | $620.00 |
| KM23679050738N | SATIN BLACK | 17X9 | 5X127 | -38mm | 71.50 | $620.00 |
| KM23679050715N | SATIN BLACK | 17X9 | 5X127 | -15mm | 71.50 | $620.00 |
| KM23679060738N | SATIN BLACK | 17X9 | 6X139.7 | -38mm | 108.00 | $620.00 |
| KM23679060715N | SATIN BLACK | 17X9 | 6X139.7 | -15mm | 108.00 | $620.00 |
| KM23679080738N | SATIN BLACK | 17X9 | 8X165.1 | -38mm | 125.10 | $620.00 |
| KM23679087738N | SATIN BLACK | 17X9 | 8X170 | -38mm | 125.10 | $620.00 |
